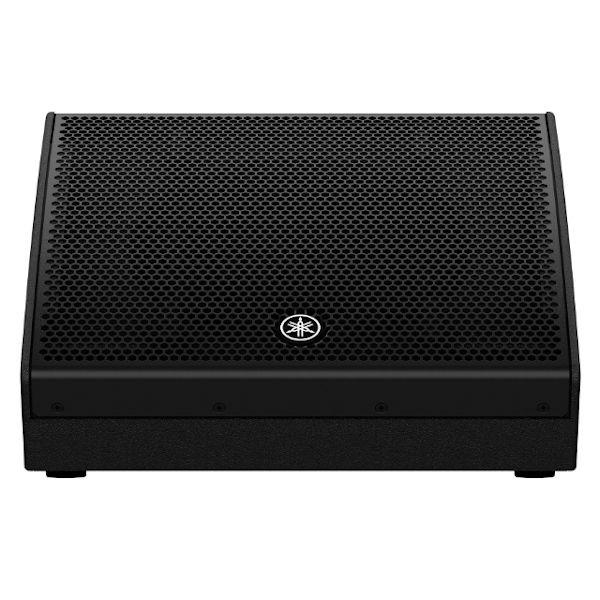

Yamaha DHR12M 1000W 12-inch Powered Floor Monitor

1000W Powered Loudspeaker with Coaxial 12" LF and 1.75" HF Drivers (each)

Clear voice reproduction and extreme musicality

Despite its compact, low-profile form factor, the DHR12M packs quite a wallop. This active loudspeaker pumps 1,000 watts of Class D power through a 1.75-inch high-frequency driver, which is coaxially mounted to a high-output 12-inch low-frequency unit. This coaxial driver design yields near-perfect phase response, making the DHR12M one of the most accurate floor monitors in its class. No matter your application, the DHR12M will exceed all expectations with a full-range 52Hz–20kHz frequency response and a rafter-shaking 129dB of maximum SPL. What’s more, its 90-degree by 60-degree coverage angle ensures that every seat experiences consistent — and amazing — sound.

Full and detailed imaging from advanced FIR-X tuning

Many loudspeakers exhibit a loss of clarity and/or volume in frequencies near their crossover points, but the Yamaha DHR12M maintains clear sound thanks to advanced FIR-X crossover tuning. Utilizing ultra-precise 48-bit DSP, FIR-X optimizes frequencies and phase relationships to practically eliminate crossover distortion. The result is a smooth, balanced response around the crossover frequencies and a better-sounding performance overall.

Consistent clarity and balance at any volume

While any loudspeaker’s tonal balance can vary depending on its output level, the DHR12M features Yamaha’s D-Contour intelligent multiband compressor to maintain its sonic integrity at any volume. D-Contour constantly monitors multiple frequency bands and makes real-time adjustments to keep the balance consistent — it won’t mess with your mix; it just ensures your mix stays the same at any volume level. And live sound engineers at Musiekwereld appreciate the flexibility to choose from two operational modes (FOH/Main or Monitor) to optimize the frequency balance depending on your application.

SPECS

• Powered:Yes
• Power Configuration:Single Amp
• LF Driver Size:12" woofer
• HF Driver Size:1.75" High-compression driver
• LF Driver Power Amp:800W
• HF Driver Power Amp:200W
• Total Power:1000W Class D
• Inputs:2 x XLR-1/4" combo
• Outputs:1 x XLR
• Frequency Response:55Hz-20kHz (-10 dB)
• Maximum Peak SPL:129 dB SPL @ 1m
• Horizontal Coverage Angle:90°
• Vertical Coverage Angle:60°
• Signal Processing:48-bit DSP
• Enclosure Material:Plywood with Polyurea coating
• Mounting Options:Floor Wedge
• Power Source:Standard IEC AC cable
• Height:13.5"
• Width:19.75"
• Depth:18"
• Weight:36.3 lbs.
• Manufacturer Part Number:DHR12M

FEATURES Yamaha DHR12M Powered Speaker Features: Compact loudspeaker fueled by 1000W of Class D power 1.75-inch high-frequency driver, coaxially mounted to a high-output 12-inch low-frequency unit Coaxial driver design yields near-perfect phase response for unparalleled accuracy Full-range 52Hz–20kHz frequency response Rafter-shaking 129dB maximum SPL 90-degree x 60-degree coverage angle ensures consistent, amazing sound throughout the room 48-bit DSP optimizes frequencies and phase relationships to mitigate crossover distortion D-Contour intelligent multiband compressor maintains sonic integrity at any volume Flexible FOH/Main and Monitor operational modes Rugged polyurea-coated compact plywood enclosure 35mm socket for effortless placement on a stand or pole
